Unlock unparalleled versatility with the KT-X85 Mid-Rise Scissor Lift, now available in two voltage variations – choose the power that suits your garage, 110V or 220V. Elevate your automotive maintenance game with this compact powerhouse, offering effortless lifting for tire changes, brake repairs, and more. The electric precision release ensures controlled elevation, while the dual voltage options cater to diverse workspace requirements. Whether you're a dedicated DIY enthusiast or a professional mechanic, the KT-X85 delivers reliability and adaptability in one dynamic package. Upgrade your lifting experience and enjoy the freedom to choose with the KT-X85 Mid-Rise Scissor Lift – where power meets precision.

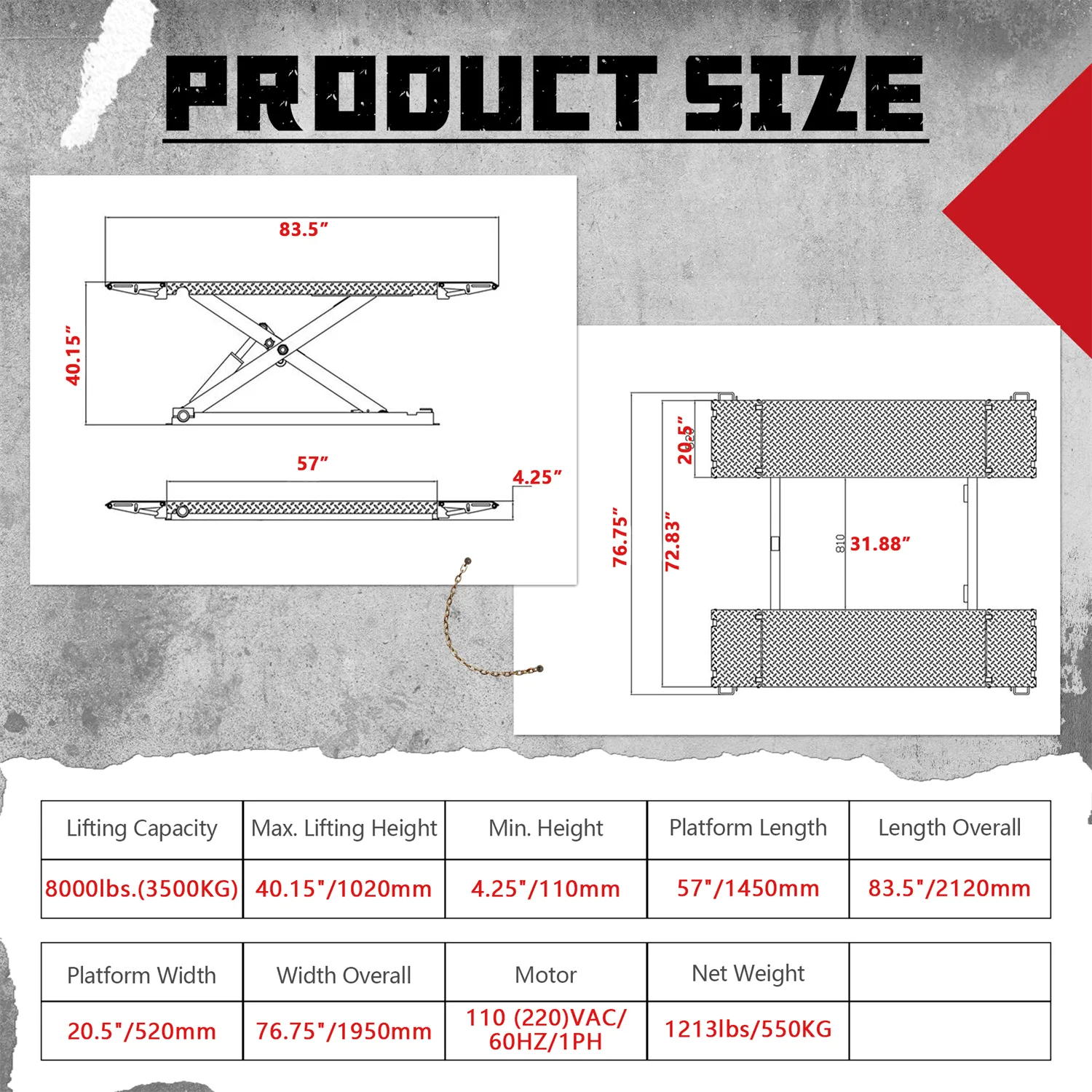

Specifications
| Dimension(LxWxH) | |
| Net weight | 1213 lbs |
| Lifting Capacity | 8000lbs/3500KG |
| Max. Lifting Height | 40.15"/1020mm |
| Min. Height | 4.25"/110mm |
| Length Overall | 83.5"/2120mm |
| Width Overall | 76.75"/1950mm |
| Platform Length | 57"/1450mm |
| Platform Width | 20.5"/520mm |
| Motor | 110 (220)VAC/60HZ/1PH |
Feature
- 8000lbs(3500KG) lifting capacity.
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
- Mobile or fixed mount design.
- Starting-up system design.

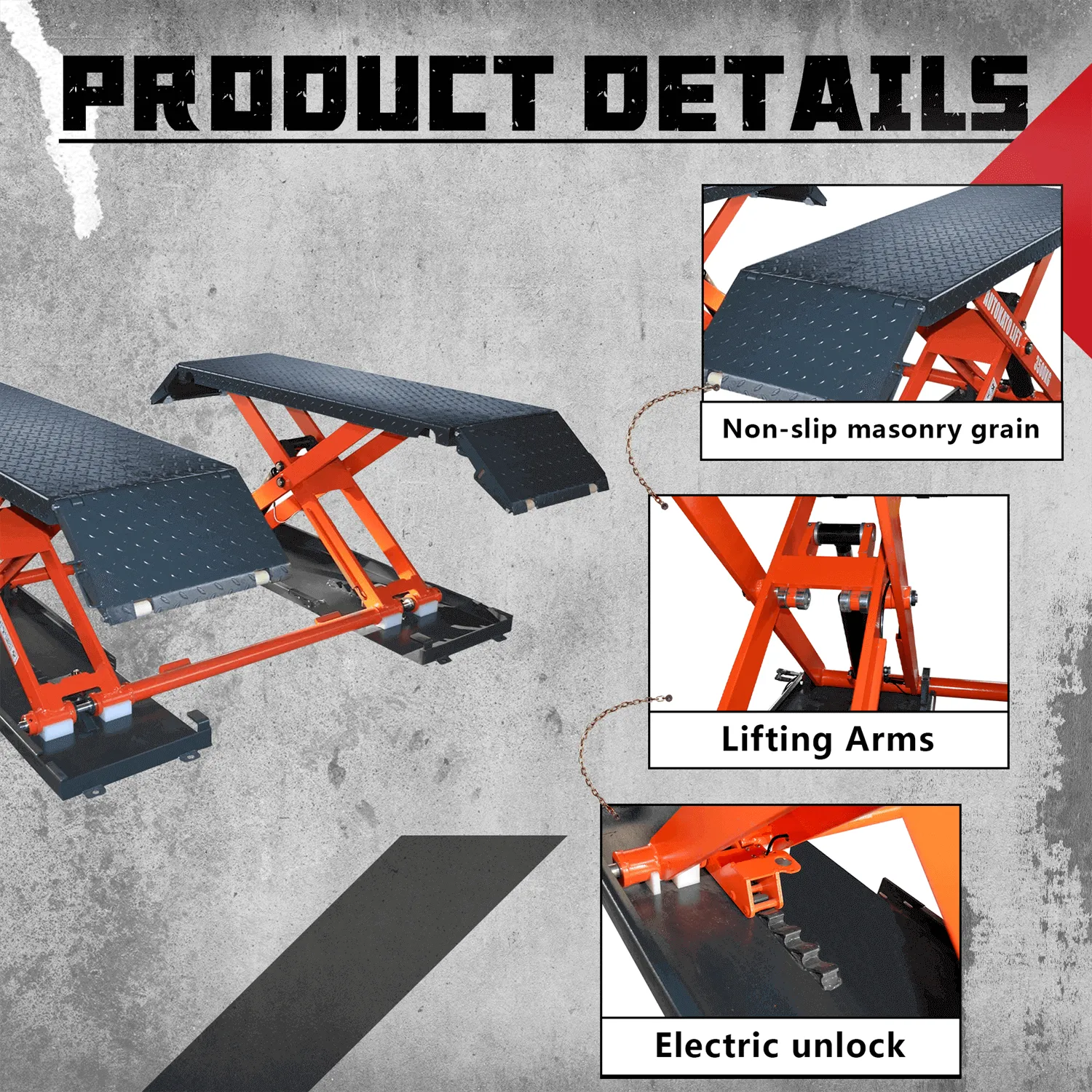

- Electric safety release.
- 24V safe control system.
- Height limit switch.
- Composite rubber lifting blocks included.
- Comes with self-lubricated bushing and bearing.
- Drive-up ramps lock design as platform extension for long vehicles.

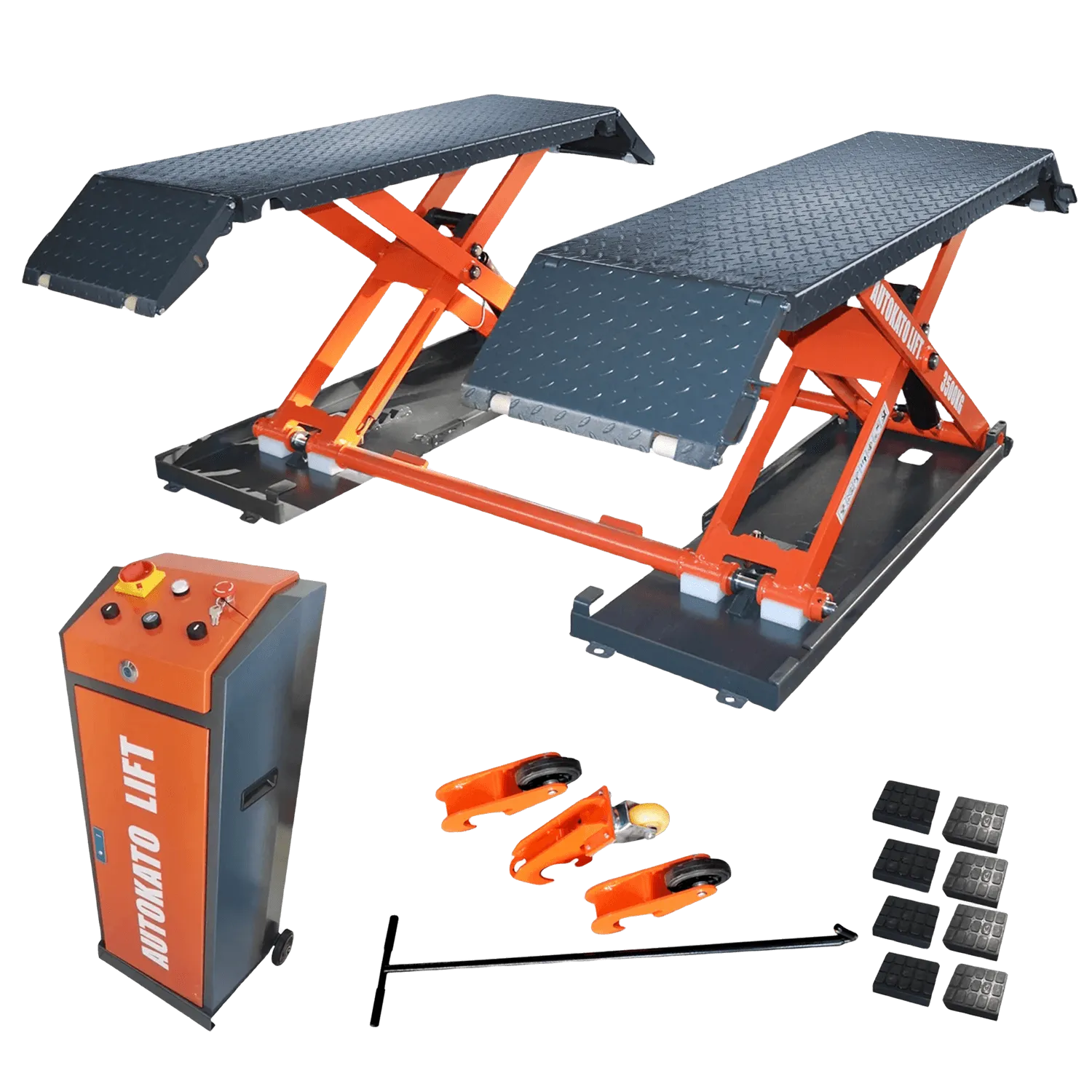

- A portable, mobile kit is included to make the lift moves in your garage easily.
- Top-level hydraulic system and aluminum motor with fan on top to avoid overheating caused by long time working with 110 (220V)V/ 60HZ/ 1PH.
Package Size
- LxWxH (inch):
Box A: 78x64x10;
Box B: 43x23x18. - Weight (lb):
Box A: 1184;
Box B: 200. - A forklift or equivalent is required for unloading
